Features
specs
Geometry
Upgrades
Hightorque Rear Hub Motor With Lock
Max Torque Up to 65NM,500 watts of rated power,peak power could reach 800 watts
Due to the system's dual sensor design,the rider has full control at all times and enjoys extremely sensitive responsiveness.
For Daliy commuting,This motor is a best option
Smart TFT 2.0" Display,Mounted On Left Handlebar
Scan the QR code,then enter into the Interface,and your e-bike will be connectted
The display offers 0-5 levels,which apply to different application scenarios
Removable Battery
Make it easy to remove for more convenient charging,users can also charge the batteries on bike Thanks to the drop protection design,you can take the battery very easily
To enhance the mileage,The battery capacity is up to 960WH,which provides continuous electricity to the whole system,makes it possible to get a range of 60KM max (Throttle Only)
IoT Devices
GPS and Bluetooth connectivity,that Allows reading data from the E-bike via our own patent CAN bus
An international SIM card could make you ready to conquer any place on Earth(Your market and SIM card should be required before shipping)
Anti Theft
GPS tracking:Real-time position&track your e-bike via Street Team(O&M management)
Remote lock:Lock the e-bike via App,even when its lost
Movement Alarm:your App will push notification when movement

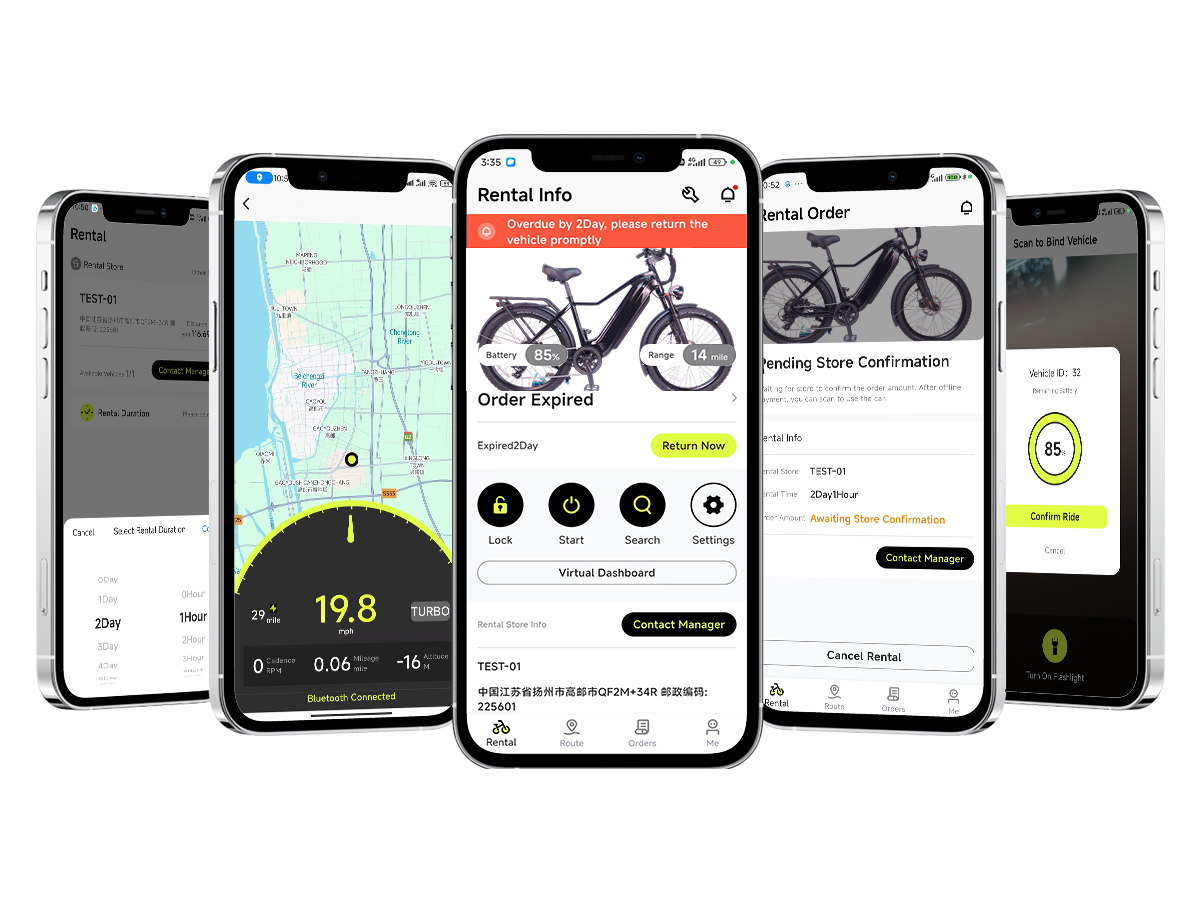

Riders' App
Matching with our Phone holder,your smart phone could be a BIG display,with the following functions
*Remote control(Lock/Unlock,On/Off)
*Search E-bike
*Virtual dashboard
*Report problems and accidents
*Contact Stores by phone
Your Fleet Management
It offers the real-time location of your fleet and vehicles available for rental
1.Dashboard
2.Order management(charge,return etc)
3.Vehicle management (Remote shut down if over due,Search e-bikes by street team)
|

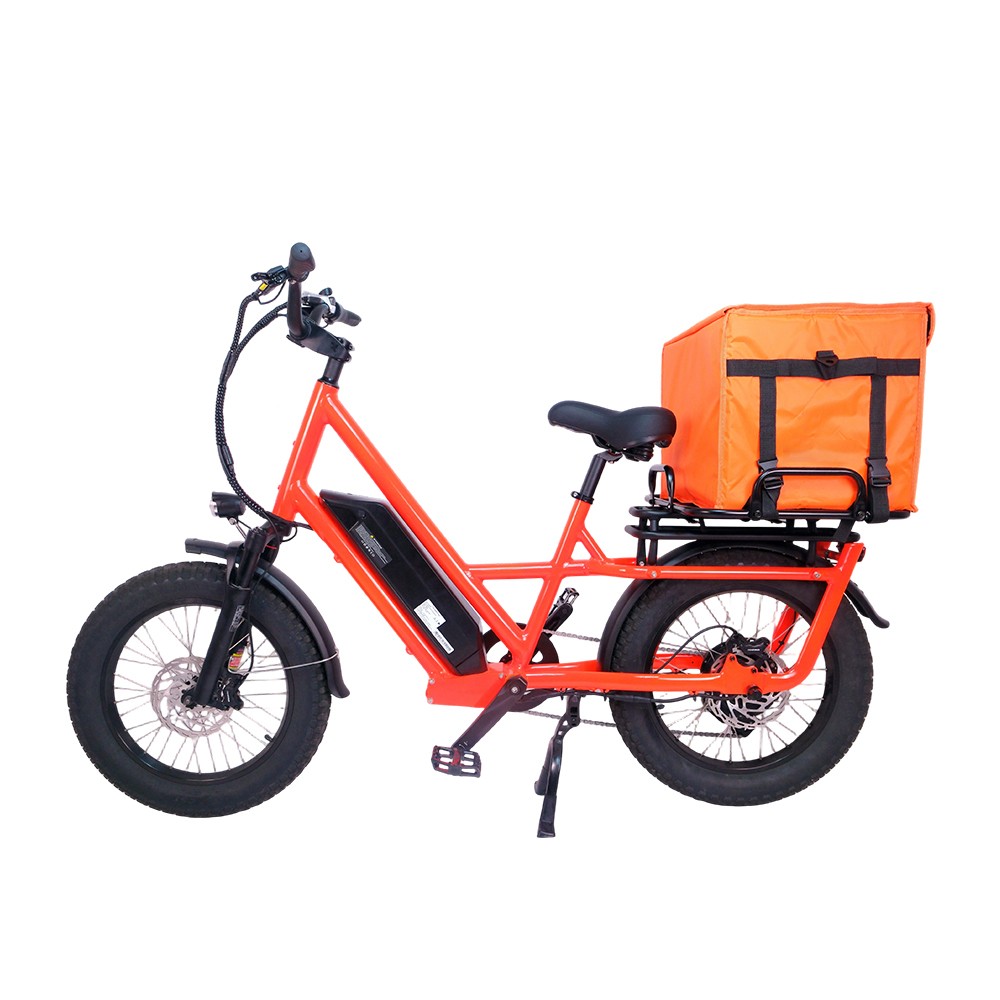

Frame
|
20*16.5inch cargo ebike step-thru
|
|
Battery(Basic)
|
Downtube,960WH,48V20AH,powered by Samsung 21700
|
|
Motor Power
|
48V500W rear hub motor ,32KM/H,Torque:60NM,With lock build-in,Self patent
|
|
Display
|
580C,2.0" TFT W/USB and bluetooth,APT
|
|
Controller
|
12 Mosfet,Sinewave,48V30A,LD power
|
|
Sensor
|
Cadence sensor,LD power
|
|
Charger
|
48V3A (7hrs)
|
|
Suspension
|
AIR Suspension,Lock out,Travel 80mm,MOZO
|
|
Brake system
|
Hydraulic brakes ,4 Piston,Rotor 180/180mm,TEKTRO
|
|
Gears
|
Tourney 7 speed W/Thumb Shifter,SHIMANO
|
|
Tires
|
20*3.3 ,anti-puncture ,CST
|
|
Accessories
|
Lights,Fenders ,Horn
|
|
Max speed
|
32KM/H (20MPH)
|
|
Range
|
60-80KM
|
|
Climbing
|
15 degree
|
|
Max load
|
200Kgs
|
|
Functions
|
IoT powered E-bike,rental fleet solution ,With software,GPS tracking,Remote control
|
|
Total Length:
|
1800mm
|
|
RC:
|
490mm
|
|
FC:
|
696mm
|
|
Wheelbase:
|
1185mm
|
|
Seat tube:
|
420mm
|
|
Reach:
|
395mm
|
|
Standover:
|
540mm
|
|
Max seatheight:
|
1020mm
|
|
Min seatheight:
|
840mm
|
|
Wheel size:
|
20 inch
|
|
Bike weight:
|
31Kgs
|
Battery Capacity could be upgraded up to to 720WH(36V20AH),powered by Samsung 21700 cells
Theoretically,the mileage can be 1.5 times and more
A Front basket could have a load capacity of 15KGs
Mobile Phone holder ,5V2.4A,Your phone is the display
Put-On-Rack insulated box
